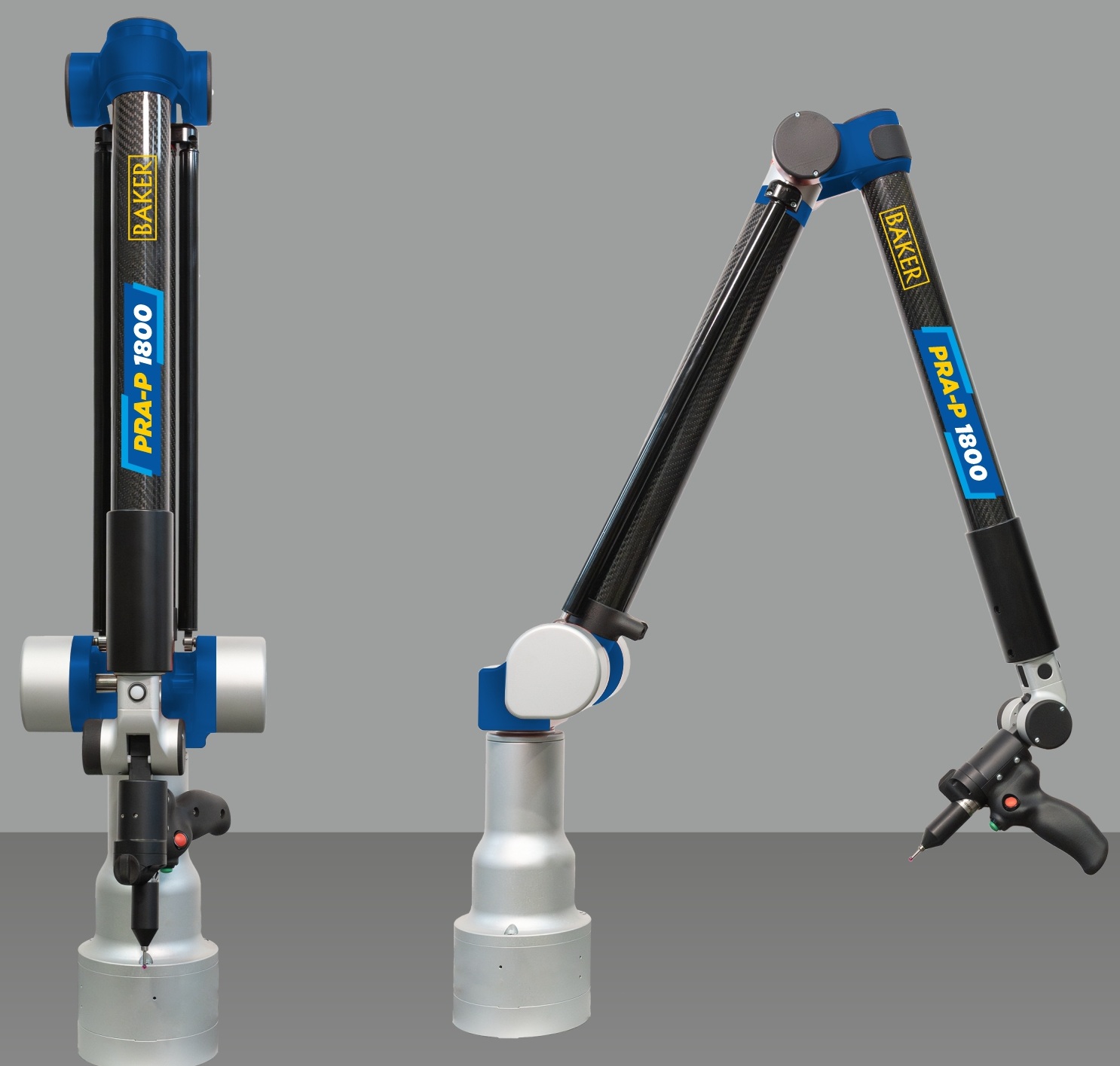

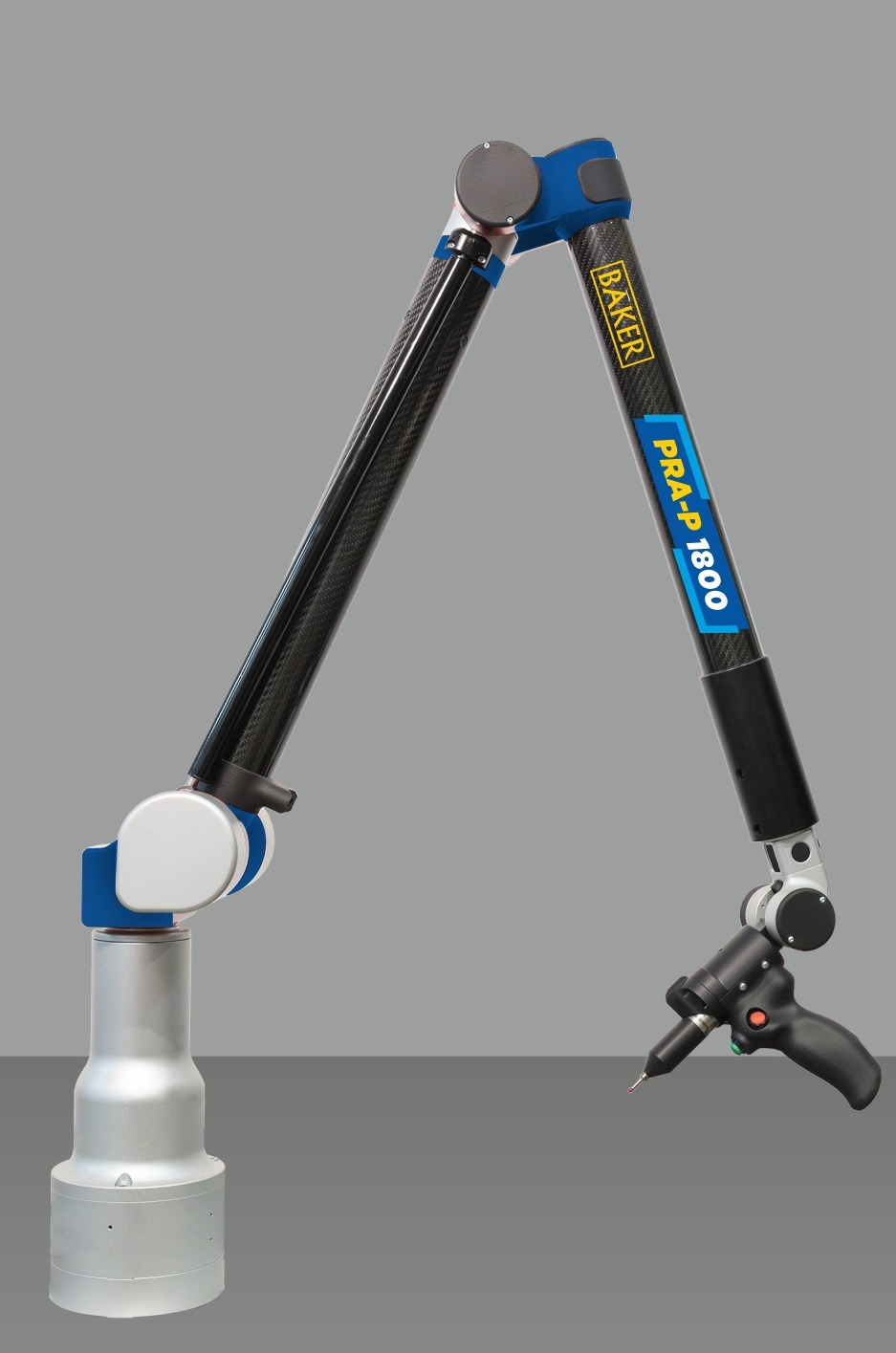

Introducing a new product line Precision Roaming Arms as a PRA and PRA-P, a perfect Articulated Arms for shop floor and large object Measurements.
DESCRIPTION
The perfect equipment for either touch or laser inspection and for reverse-engineering, with the highest standards in terms of reliability and precision.
From this year Baker Gauges introduces in the market the revolutionary Targeted Calibration, a procedure to increase the precision beyond the state of art of the
portable measuring arms.
EXCLUSIVE FEATURES
- Measuring range from 1.8 up to 4.0 m diameter
- Premium Quality materials with Carbon Fiber
- 6 and 7 axes configuration
- Extremely Maneuverable
- Multiple Software selection
- Electromagnetic brake*
- Targeted Calibration
- Perfectly balanced
- Highest Precision
| PRA-P | ||||
| 6-axis | ||||
| PRAP6A18 | PRA-P 1800 | 1800 | 0.020 | 0.012 |
| PRAP6A25 | PRA-P 2500 | 2500 | 0.026 | 0.016 |
| PRAP6A32 | PRA-P 3200 | 3200 | 0.036 | 0.020 |
| PRAP6A40 | PRA-P 4000 | 4000 | 0.046 | 0.024 |
| 7-axis | ||||
| PRAP6A18 | PRA-P 1800 | 1800 | 0.027 | 0.017 |
| PRAP6A25 | PRA-P 2500 | 2500 | 0.034 | 0.021 |
| PRAP6A32 | PRA-P 3200 | 3200 | 0.045 | 0.026 |
| PRAP6A40 | PRA-P 4000 | 4000 | 0.056 | 0.030 |
