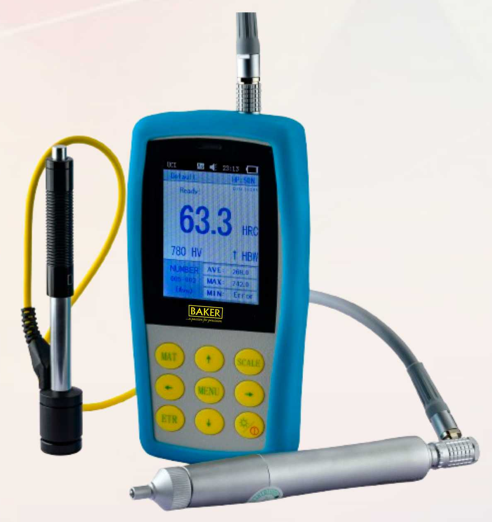

High Precision Ultrasonic & Leeb Portable Hardness Tester
This instrument is a portable combined hardness tester which integrates the advantages of Ultrasonic contact impedance and leeb methods. Enabling users to test both large rough – surfaced products and small, complex shaped samples, making it ideal for non-destructive metal hardness testing across various materials and scales.
Salient Features:-
- One Instrument Two Applications-Support ultrasonic probe and Leeb impact device.
- Metal Shell-Metallic texture, shield electromagnetic interference effectively, improve Instrument stability.
- Color Screen Display-Display the current measurement value, accumulative Measurement value, Max, Min and Ave value.
- Bluetooth Transferring-Support wireless Bluetooth print and data transferring.
- Mass Storage-Save 1000 groups data.
- Calibration Access-Save 20 groups calibration data without doing calibration for the same material over and over.
| Standard Configuration | |
| Instrument Main Body | 1 No. |
| 5 Kg Manual Probe | 1 No. |
| Impact Devices Type D | 1 No. |
| Rockwell Hardness Block | 1 No. |
| Leeb Hardness Block | 1 No. |
| Probe Cable | 1 No. |
| USB Recharger | 1 No. |
| Anti Vibration Case | 1 No. |
| Operation Manual | 1 No. |
| Specifications: | |
|---|---|
| Ultrasonic Probe Standard delivery | 5 Kgf (optional 1Kgf & 10Kgf) |
| Impact Devices | Standard delivery D (optional G) |
| Hardness Scales | HL, HV, HB, HRC HRB, HRA, etc |
| Measuring Range | HV:50~1599; HRC:20 ~ 68; HB:76 ~ 650; HRB:41 ~105; HLD:170~960 |
| Measuring Accuracy | HV:±3 %HV; HRC:±1.5HRC; HB:±3 %HB; HL: ±6 HL |
| Resolution | 0.1 HRC, 1 HV, 1 HB, 1 HLD |
| Data Storage | 1000 group test results and 20 group calibration data |
| Result Display | Measurement value, Max, Min, Avg, single mode, batch mode, etc. |
| Data Transfer | Bluetooth |
| Operating Environment | Temperature: -1 0'C to 50° C ; Humidity :30%-80% |
| Dimension | 160x80x31mm |
| Weight | up to 5 kg without Master |
