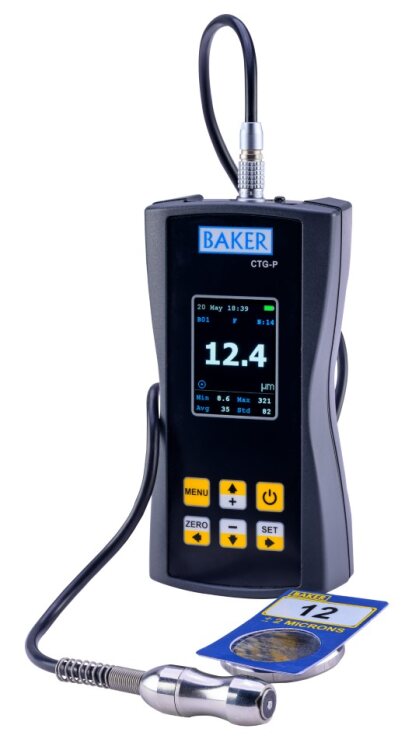

The CTG-P model is equipped with software facility for live reading transfer to a PC through cable connection. The software allows users to store and maintain reading backup on the system for future reference and analysis.
FEATURES:
• The CTG-P model is equipped with software facility for live reading
transfer to a PC through cable connection. The software allows users to
store and maintain reading backup on the system for future reference
and analysis.
• High Sensitivity, Simplicity & Ease of operation with Automatic Probe
Recognition
• Large number of new generation wear resistant transducers of wide
purpose of application with algorithms that avoid influence of wear on
measurement accuracy
•Various measuring modes, wide range of functions for work with
statistics.
• Larger keypad and Block- weight white display for long AAA Battery of
regulars TFT display with 3.2″ diagonal ensure user-friendly interface
Applications:
• Dielectric (paint, lacquer, enamel, plastic, teflon, anodic oxide, mastic and other) coatings on products from ferrous and non-ferrous
metals.
• Galvanic (nickel, zinc, chrome, cadmium, tin, silver, copper and other) coatings on products from ferrous and nonferrous metals.
• Lacquer, paint and galvanic coatings on inner surfaces of pipes and cylindrical products.
• Protective layer of concrete and determination of steel reinforcement position in concrete.
| Technical Specifications |
|---|
| Measurement range - 0.5 um - 10 mm • Quantity of transducers- Unlimited (Customer's selection)Quantity of stored measurement results - 1000 Nos. • Calibration methods one-point calibration (zero on uncoated substrate) two-point • Working Conditions :- Temp. 10 -50C & Humidity-≤90% • 'L.C-0.1 um up to 20 um & Accuracy :- ± (3%H+1) um |
| Probe Details:- |
| F1 Probe :- Magnetic Steel & Iron ( Range -0- 1500 um) •Application : - Paint, Insulation, Powder, CED, Galvanic Zn, Ag, Cd, Ni, Cu Ti, Zn-Ni Mixture, Black Zn, Hard Chrome etc. •Tip Diameter :- 10 mm & Mini. Curvature Radius -6 mm |
| N1 Probe :- Eddy Current base for Copper, Aluminum, Zinc & Tin (Range :- 1 – 1500 µm) • Tip Diameter :- 13 mm & Mini. Curvature Radius - 7 mm • Application - Paint, Powder, Anodizing, or Galvanic Zinc, Tin, Cu etc. |
